Embedding FlipBook on shopify store using "FlipBook Display" App Block

In the previous part, we learned all the available methods to Embed or Share Flipbooks in Your Shopify Store. Now we will explore how to embed FlipBook in a Shopify store using "FlipBook Display" app block.



Initiating App Block


TNC PDF FlipBook adds an App Block which can be used to embed/link the FlipBook on any of your shopify store pages. Please follow the steps given below sequentially to embed/link to the FlipBook you just created, on your store.

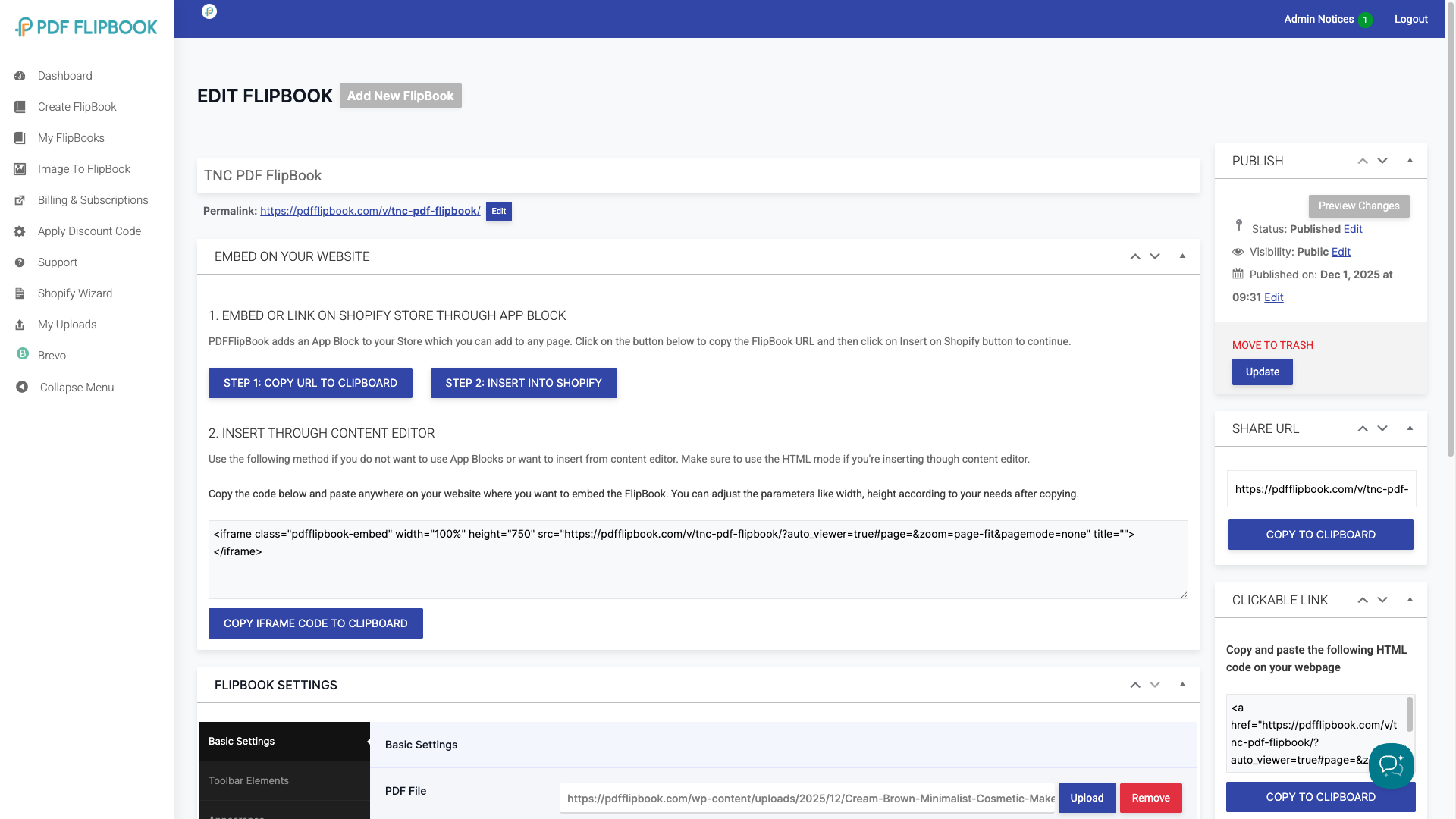

  1. Click on  STEP 1: COPY URL TO CLIPBOARD Button ( This will copy the URL of your FlipBook to your clipboard )
  2. Now click on STEP 2: INSERT INTO SHOPIFY Button ( This will open your store with the addition of an App Block )

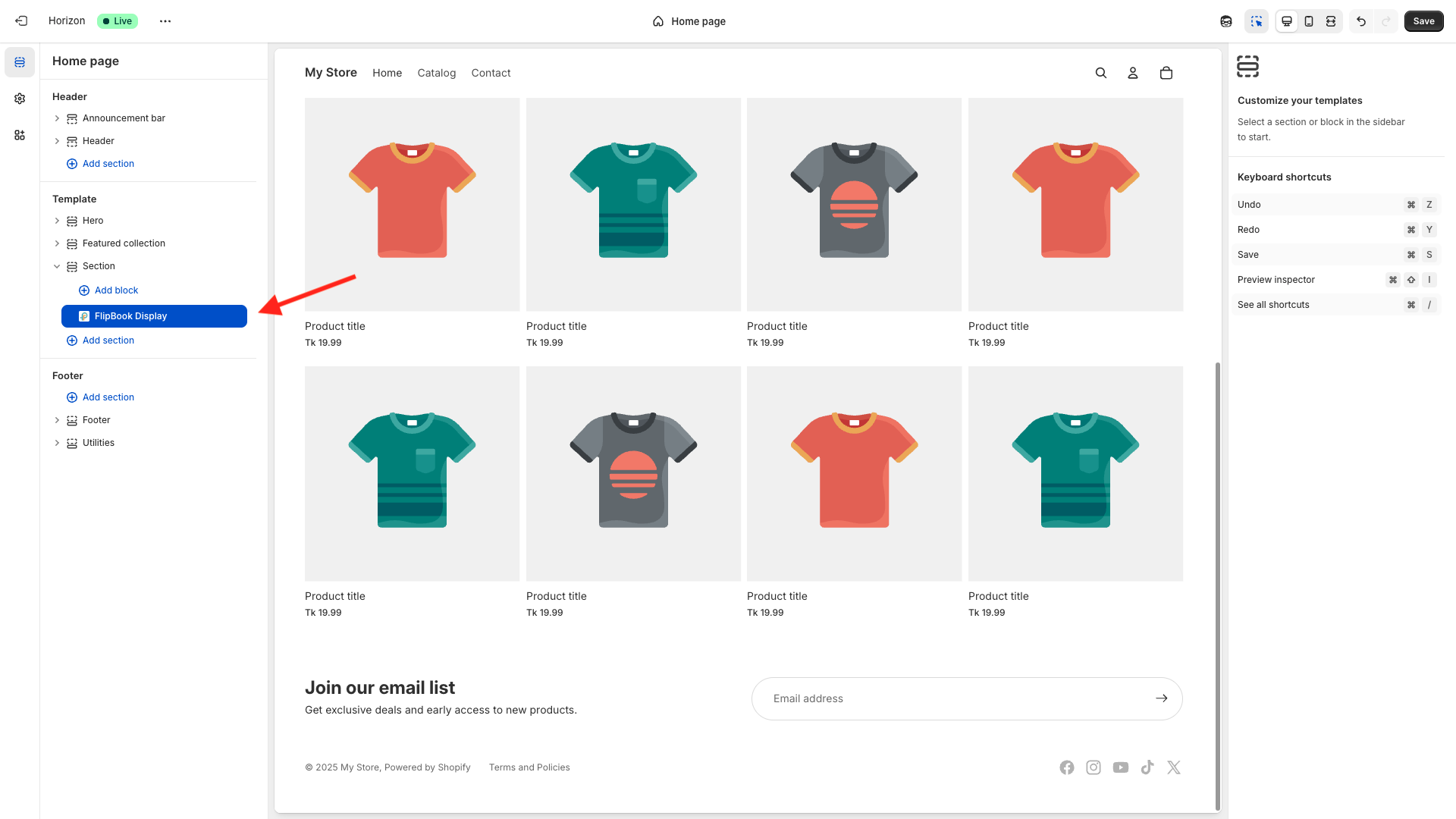

Once you are on the store page with App Block, Look under the Templates Section to find a new App Block named FlipBook Display. ( Figure 2 )


Figure 2, locating FlipBook display app block

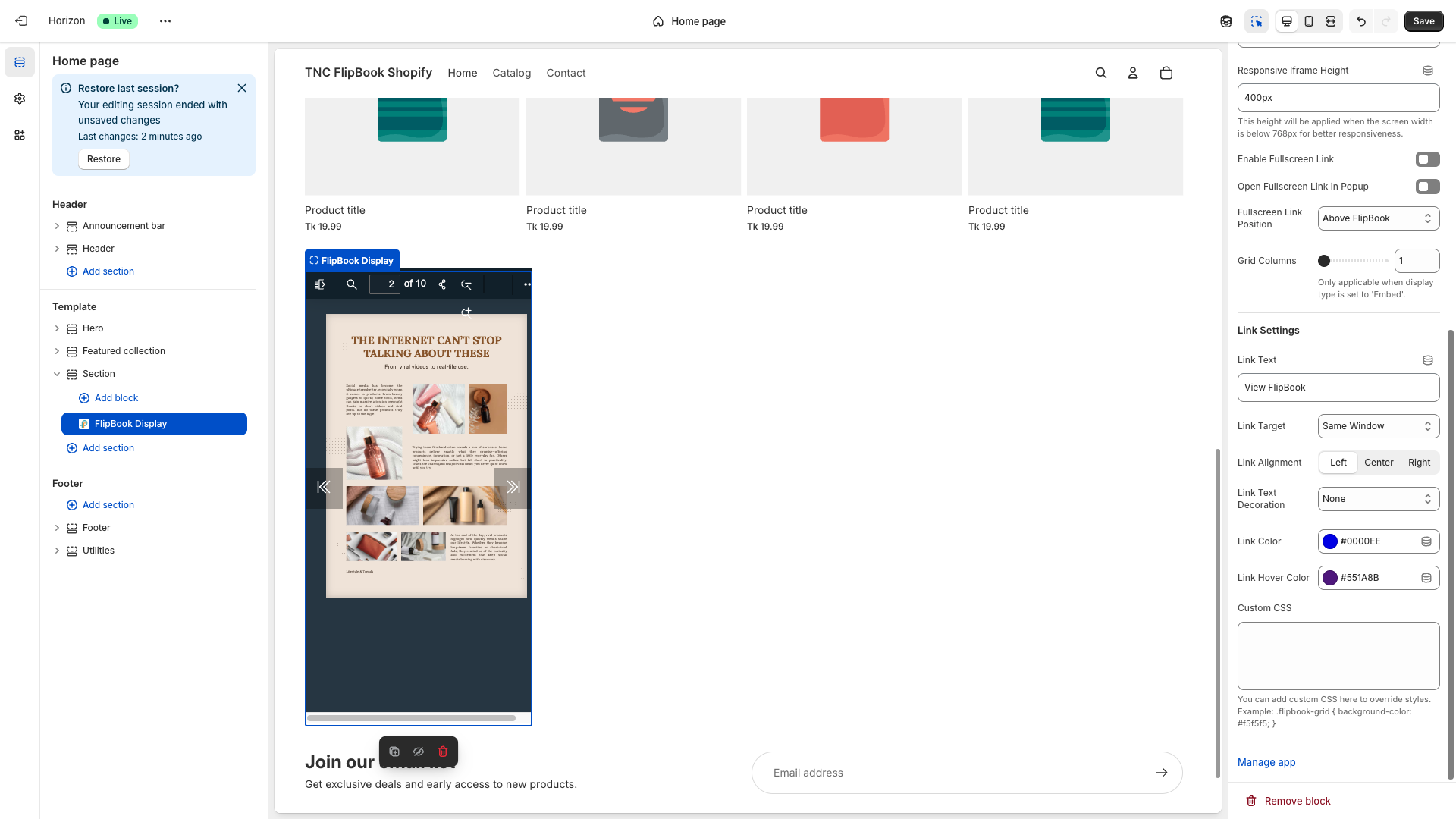

After finding FlipBook Display in the template section, simply click on it, and you will get another interface to configure all the embedding/linking options. You can understand better by looking at the screenshot below.



You will find all the available settings for embedding here. Let's demonstrate each one properly:

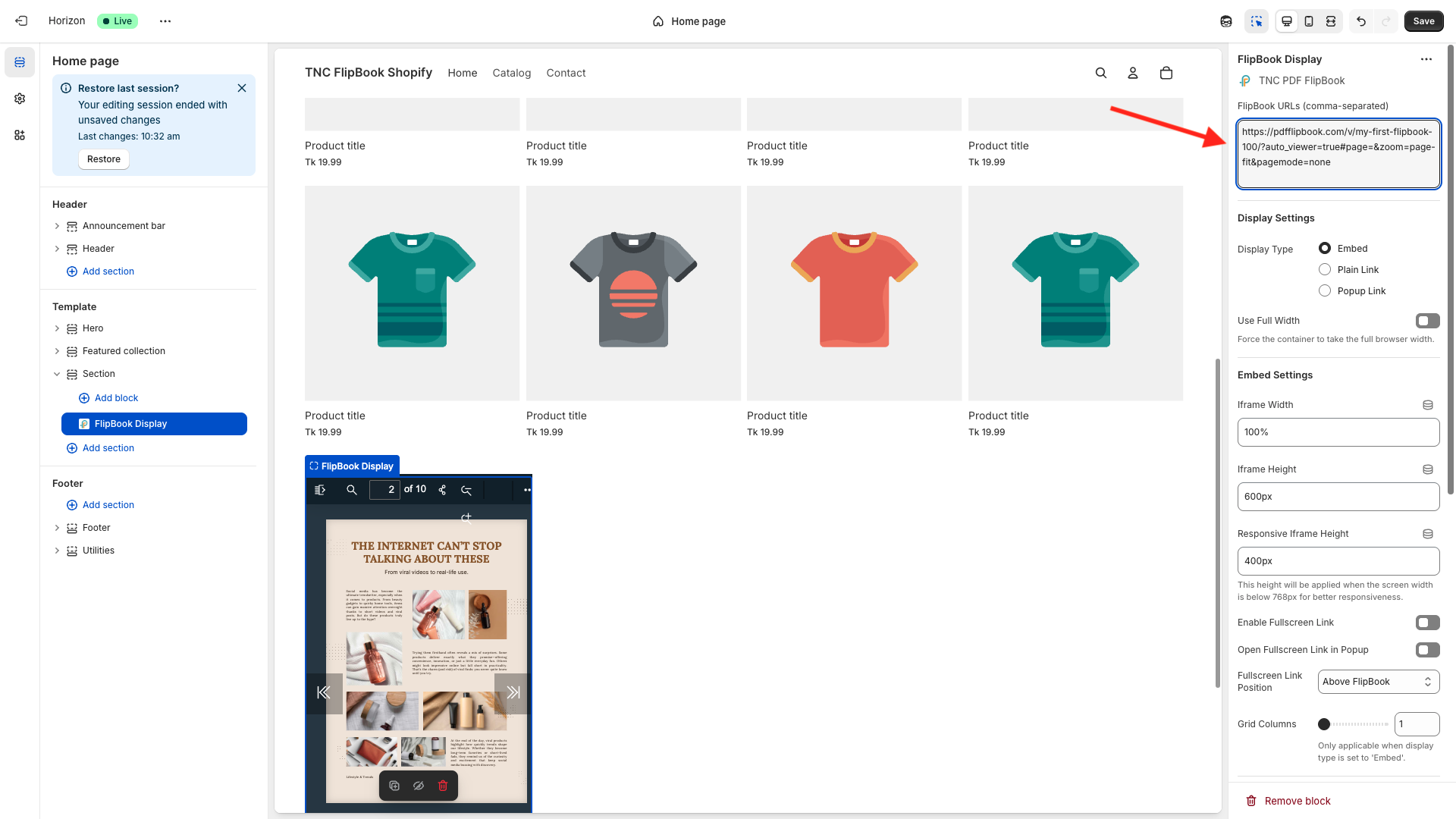

FlipBook URLs (comma-separated):

This is the field to insert your FlipBook's URL. At this point, you should already have the FlipBook URL copied to your clipboard if you've been following along the instructions sequentially. If not, simply go back to the previous steps to copy the FlipBook URL. Simply paste the URL in this field once you have the URL copied.

This field supports multiple FlipBook URLs, so if you need to embed multiple FlipBooks on the same page, just insert the URLs separated by comma.

Display Settings:

You will see 3 display types here: Embed, Plain Link, and Popup Link. Select the Embed option to embed.

Use Full Width:

If you want your embedded FlipBook to take the entire screen instead of the page container width, enable this option. It will stretch the FlipBook container to take full available width of user's browser without respecting the container size of your theme.

Embed Settings:

The Embed Settings in the TNC PDF FlipBook Shopify app control how your FlipBook appears when embedded on your store pages using the App Block. Here's what each setting does:

  • Iframe Width: Define the width of your embedded FlipBook. It's set to 100% by default but you can adjust according to your needs.
  • Iframe Height: Define the Height of your embedded FlipBook. It's set to 600px by default but you can adjust according to your needs.
  • Responsive Iframe Height: This setting allows you to define a different height for mobile screens under 768px screen size. Defaults to 400px but you can adjust based on your needs.

These settings help ensure your FlipBook looks great on all devices by adjusting size dynamically, making it easy to embed and display professionally on any Shopify page.

Enable Fullscreen Link:

If you enable Fullscreen link, it will display a link above or below the embedded FlipBook (based on your configuration on other fields described below) which will open the FlipBook taking the whole browser width and height. You can also define if it opens in new tab or popup using other settings described below. This features ensures distraction free and immersive reading experience for those who prefers.

Open Fullscreen Link in Popup:

Enabling this setting will open the Fullscreen link using a popup instead of opening a new tab or navigating away from the current page.

Fullscreen Link Position:

You can set the location of your Fullscreen link anywhere you want, either in Above FlipBook or below the FlipBook.

Grid Columns:

This is an outstanding feature if you want to have a grid of FlipBooks or display multiple FlipBooks on any page. Select the number of columns you want to use and it will display your FlipBooks in columns respecting the setting defined here. Please make sure to include all the comma separated FlipBook URLs in the respective field if you plan to embed multiple FlipBooks.



Link Settings:

The "Link Settings" in the TNC PDF FlipBook Shopify app allows you to control how links within your FlipBook behave and appear. These setting also applies to Fullscreen Link text if you are using embed option with Fullscreen Link. Here’s what you need to know about them:

  • Link Text: You can customize the clickable link text, for example, "View FlipBook."
  • Link Target: Choose if the link opens in the same window or a new window.
  • Link Alignment: Align the link text left, center, or right within its container.
  • Link Text Decoration: Set decoration style such as none, underline, overline, or line-through.
  • Link Color: You can choose a default color for link text.
  • Link Hover Color: You can choose which color the link will change to when you hover over the link.

Custom CSS:

This option lets you add your own CSS code to customize the FlipBook’s appearance beyond the default settings. You can add custom CSS here to override styles. Example: .flipbook-grid { background-color: #f5f5f5; }


Next: Linking to FlipBook on shopify store using "FlipBook Display" App Block
